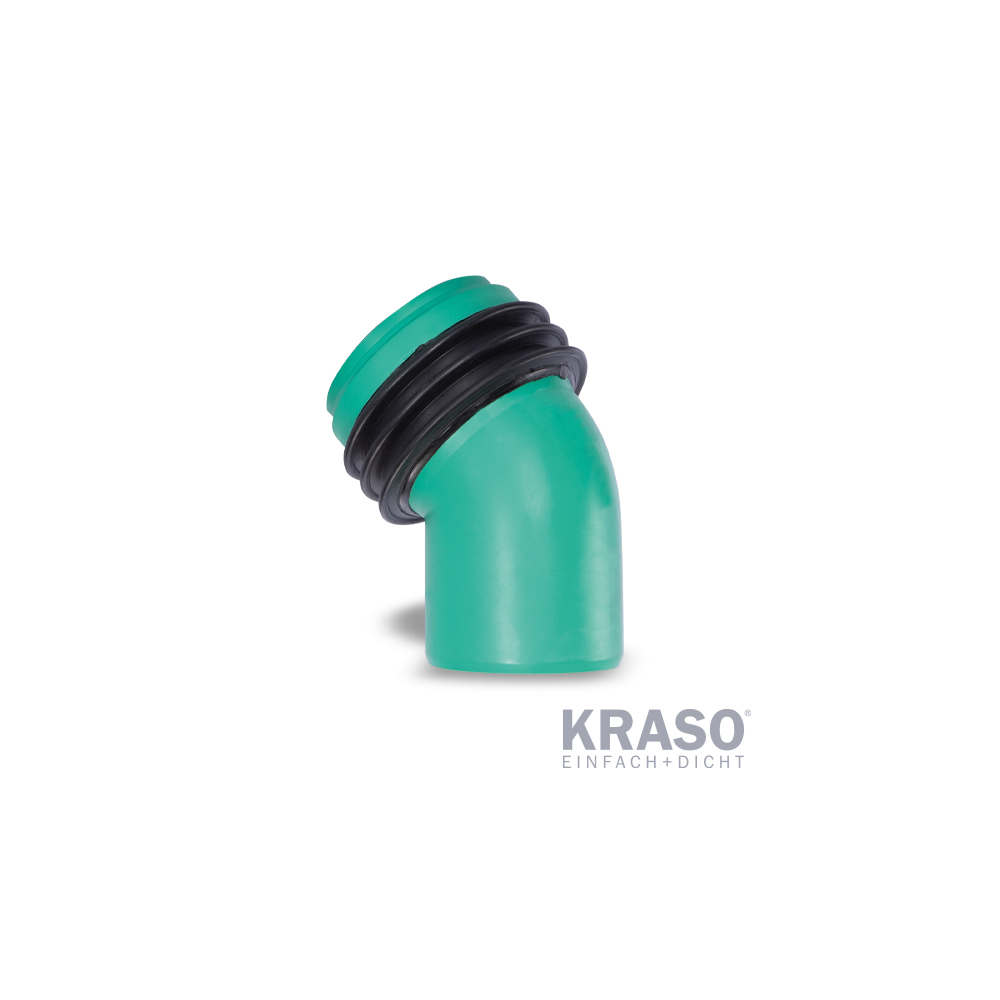

KRASO 15°| 30°| 45° Bend - KG 2000 (piece)

KRASO 15°| 30°| 45° Bend - KG 2000 (piece)

https://lta.primostar.eu/web/image/product.template/6666/image_1920?unique=6908a68


In accordance with DIN EN 14758, for installation in waterproof concrete walls for the connection to KG 2000 pipes, with water pressure tight surrounding, thermally welded KRASO 4 Seal and formed plug-in sleeve on one side | DafStB waterproof concrete guideline: stress class 1 + 2

Slip-on-sleeve with KRASO 4 Seal


+ The surrounding KRASO 4 Seal is joined to the pipe penetration force-fit this prevents creep or slippage. Due to the special geometry our KRASO 4 Seal produces a grip with the concrete.

+ Altogether this results in a water pressure tightness up to 10 bar - MPA-tested! The KRASO 4 Seal also protects against the naturally occurring nobel gas radon and by this prevents a concentration of the radioactive gas in indoor spaces.

+ All pipe penetrations are also available as KG 2000 with thermally welded KRASO 4 Seal.

+ DafStB waterproof concrete guideline: stress class 1 + 2


55,67 € 55.67 EUR 55,67 €

Not Available For Sale

(55,67 € / gab)
  • Skersmuo DN
  • Lenkimas

Ši kombinacija neegzistuoja.

Susisiekite su mumis

Specifikacijos

Skersmuo DN 110, 125, 160, 200, 250, 315, 400, 500
Lenkimas 15 °, 30 °, 45 °
