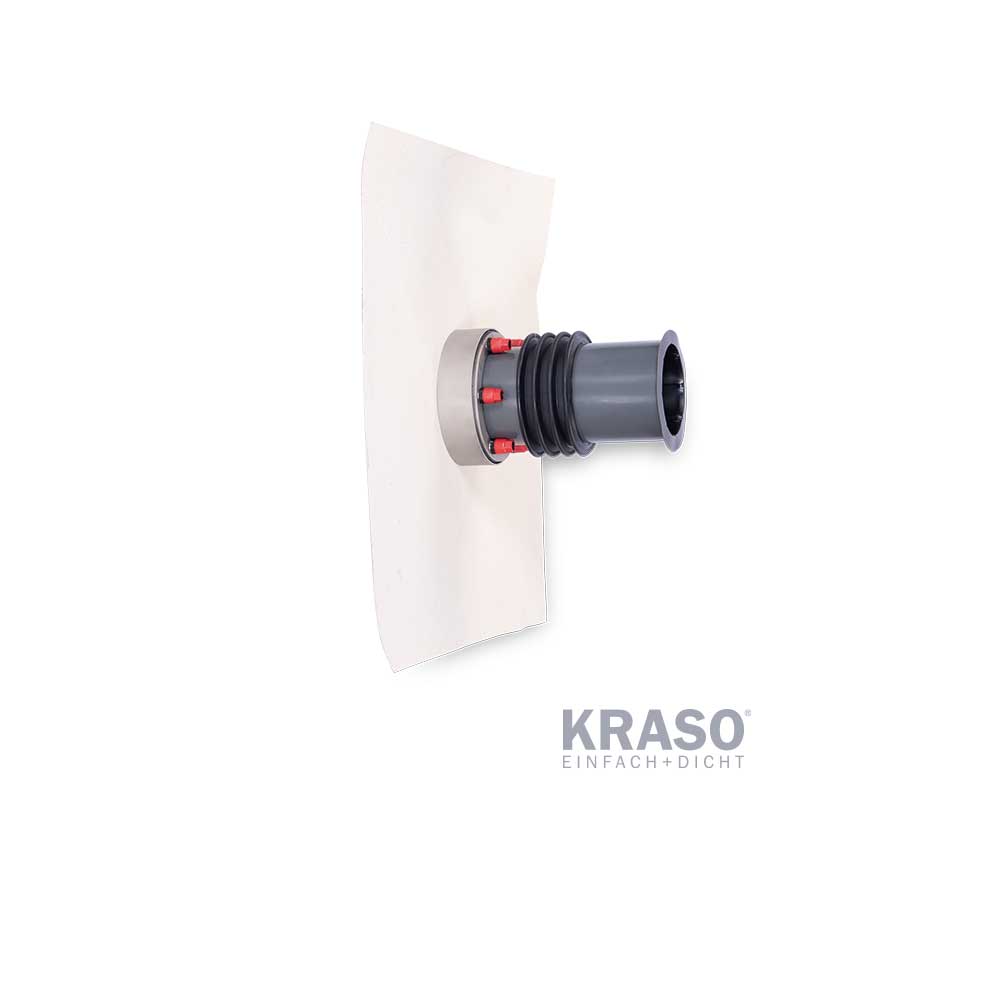

KRASO Casing Type FBV-FE - true diameter casing (piece)
Thick-walled plastic casing for a compliant integration of FBV films | DafStB waterproof concrete guideline: stress class 1 + 2
The casing for FBV integration
+ Casing for a compliant integration of fresh concrete composite films
+ Independent from the manufacturer: fresh concrete composite films (FBV) of all manufacturers can be integrated at the factory
+ KRASO FBV Sealing Flange made of non-corrosive stainless steel V2A with 20 cm surrounding, square fresh concrete composite film
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ The thick-walled true diameter plastic casing for concreting: as a recess for retrofit installation of cables or pipes using a sealing insert!
+ With water pressure tight surrounding KRASO 4 Seal - certified and approved: due to the special geometry, the 4 Seal produces a water pressure, gas- and odour-tight grip with the concrete
+ Materials and processing: KRASO Casings are made of weatherproof and impact resistant plastic. The surrounding KRASO 4 Seal is joined monolithically to the plastic pipe by vulcanization.
+ IAF tested: radon-tight!
+ Certified with the quality seal of the FHRK e. V.
+ DafStB waterproof concrete guideline: stress class 1 + 2
Specifikacijos
| Vidinio skersmens ID | 250, 100, 125, 150, 200, 300 |
| sienelės storis cm | 20, 30, 40, 50, 24, 25, 35, 36,5, 45 |
