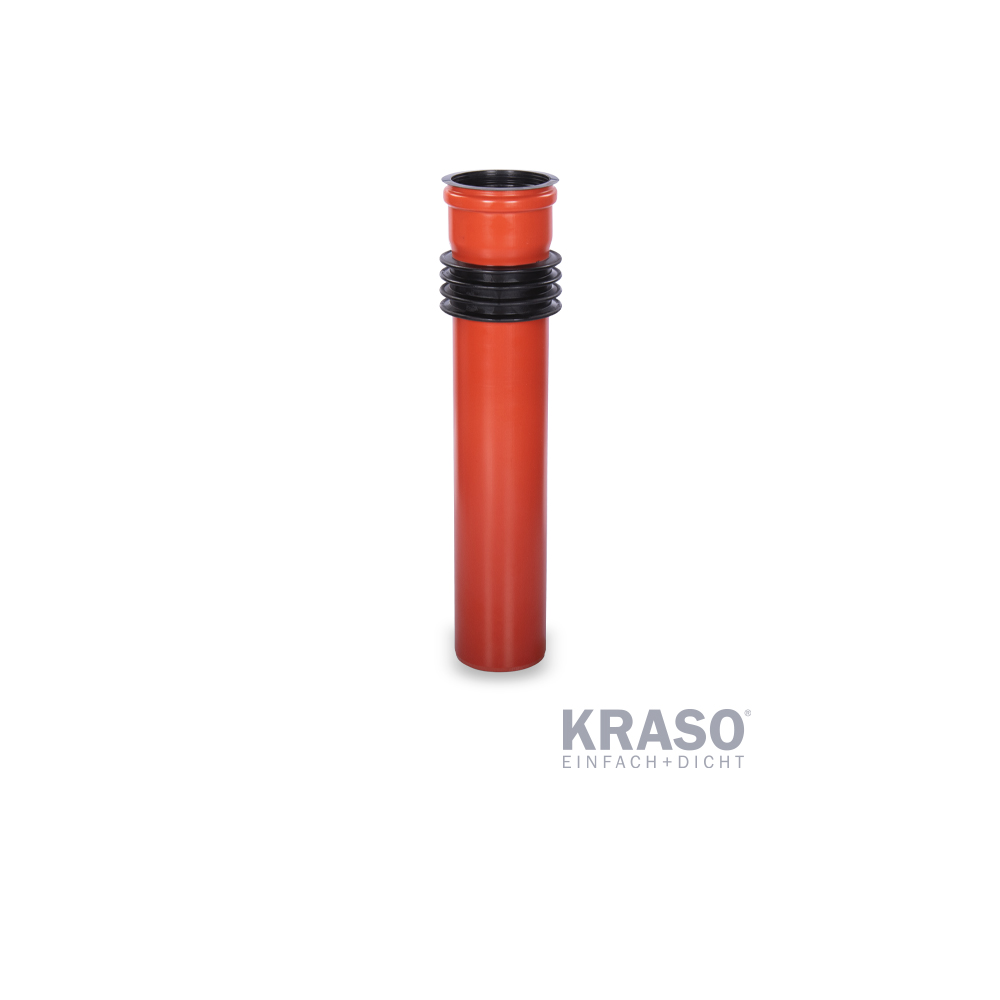

KRASO Floor Penetration Type BDF (piece)
For connection to KG/HT pipes, also available with KRASO Foil Flange, oil- and bitumen resistant, surrounding approx. 15 cm. For the integration of the foil flange, we recommend our adhesive and sealant KRASO PU 50 | DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E.
Simple, tight and approved
+ KRASO 4 Seal – MPA-tested up to 10 bar!
+ IAF-tested : radon-tight
+ Made of dimensionally stable and pressure-restistant solid wall material: low abrasion, easy installation at low temperatures
+ In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)
+ Also available in KG 2000: polypropylene (PP), mineral- filled, smooth walls, long-lasting
+ Also available with oil- and bitumen resistant KRASO Foil Flange
+ Formed plug-in sleeve on one side, for connection to KG/ HT pipes
+ Including KRASO Cover as building period protective cover
+ Also available as thermally insulated floor penetration!
+ DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
Specifikacijos
| Folijos flanšas | be folijos flanšo, su folijos flanšu |
| Skersmuo DN | 110, 125, 160, 200, 250, 315, 400, 500 |
