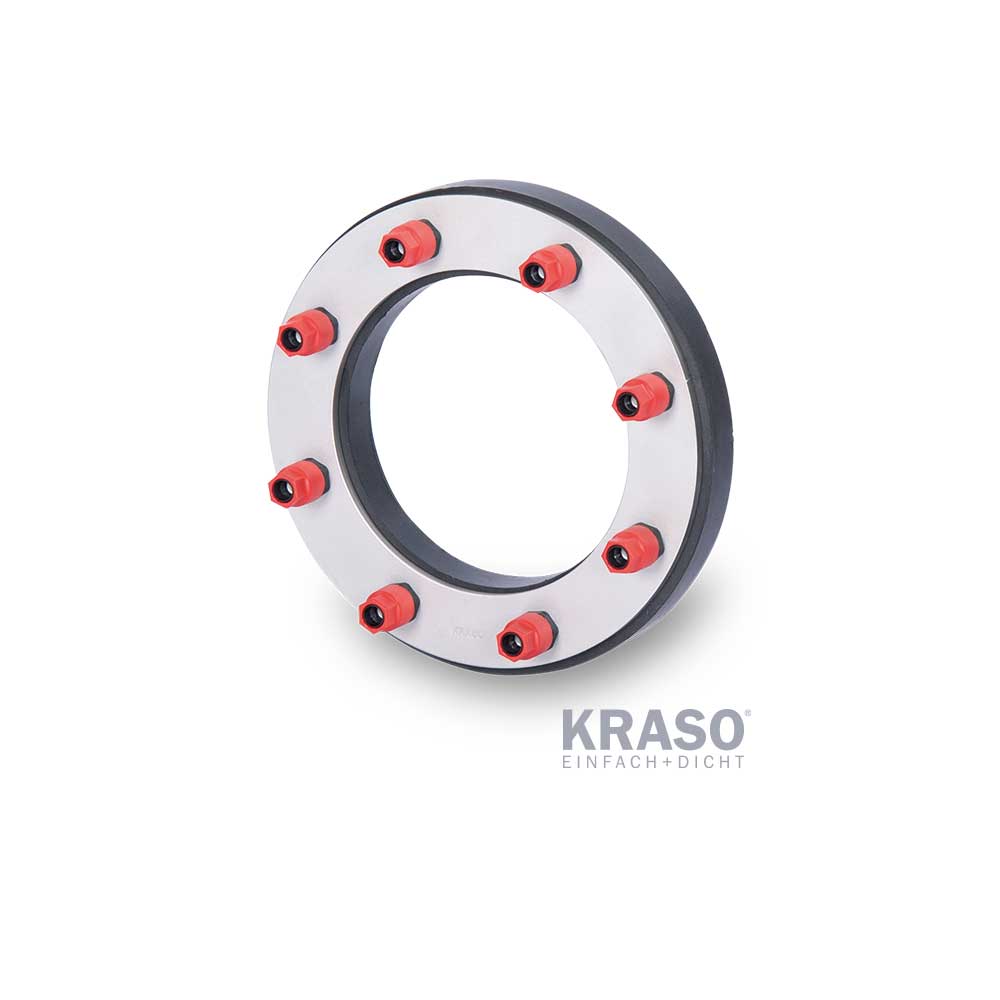

KRASO Sealing Insert Type ED + DD + VD (piece)

KRASO Sealing Insert Type ED + DD + VD (piece)

https://lta.primostar.eu/web/image/product.template/6575/image_1920?unique=6908a68



for installation of pipes, Torque Control Nut KRASO DKM, non-corrosive stainless steel V2A, single sealing, against pressing water up to 1 bar, 20 mm seal (KRASO Type ED, KRASO Type ED/T), double sealing, against pressing water up to 3 bar, 40 mm seal (KRASO Type DD, KRASO Typ DD/T), quadruple sealing, against pressing water up to 8 bar, 80 mm seal (KRASO Type VD) | DafStB waterproof concrete guideline: Stress class 1 + 2


Simply just better

+ For core drillings or casings
+ KRASO Sealing Insert quality: 5 mm thick clamping plates made of non-corrosive stainless steel V2A, a specially developed rubber mixture with even better sealing characteristics, welded-on studs instead of through bolts, more studs for an even pressure distribution

+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!

+ Tested gas-tight according to DIN EN 13611 (chapter 7.12) proven by the DVGW research centre at the Engler-Bunte-Institute (EBI) of the Institute for Technology in Karlsruhe

+ MPA-tested: protects reliably against pressurised water up to 10 bar!

+ Gas- and odour-tight – high-quality in terms of TA-Air!

+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101!

+ Certified with the quality seal of the FHRK e. V.

+ KRASO Sealing Insert Configurator – simple and fast: configure the matching sealing insert online or via our app!


63,83 € 63.83 EUR 63,83 €

Not Available For Sale

(0,00 € / gab)
  • ED + DD + VD
  • Šerdies skylė
  • Skersmens vamzdis arba kabelis ED/VD/DD

Ši kombinacija neegzistuoja.

Susisiekite su mumis
Related Documents:
KRASO Läbiviigutihend Type DD - TDS(EST).pdf


Specifikacijos

ED + DD + VD ED, DD, VD, DD/T, ED/T
Šerdies skylė 80, 100, 125, 150, 200, 250, 300, 400, 500, 350
Skersmens vamzdis arba kabelis ED/VD/DD 22-25, 32-35, 40-43, 48-50, 60-63, 75-77, 78-80, 88-90, 108-110, 114-118, 123-125, 133-135, 139-140, 158-160, 168-170, 177-180, 200, 210, 219, 225, 250, 273, 280, 315, 326, 400, 429, 450
