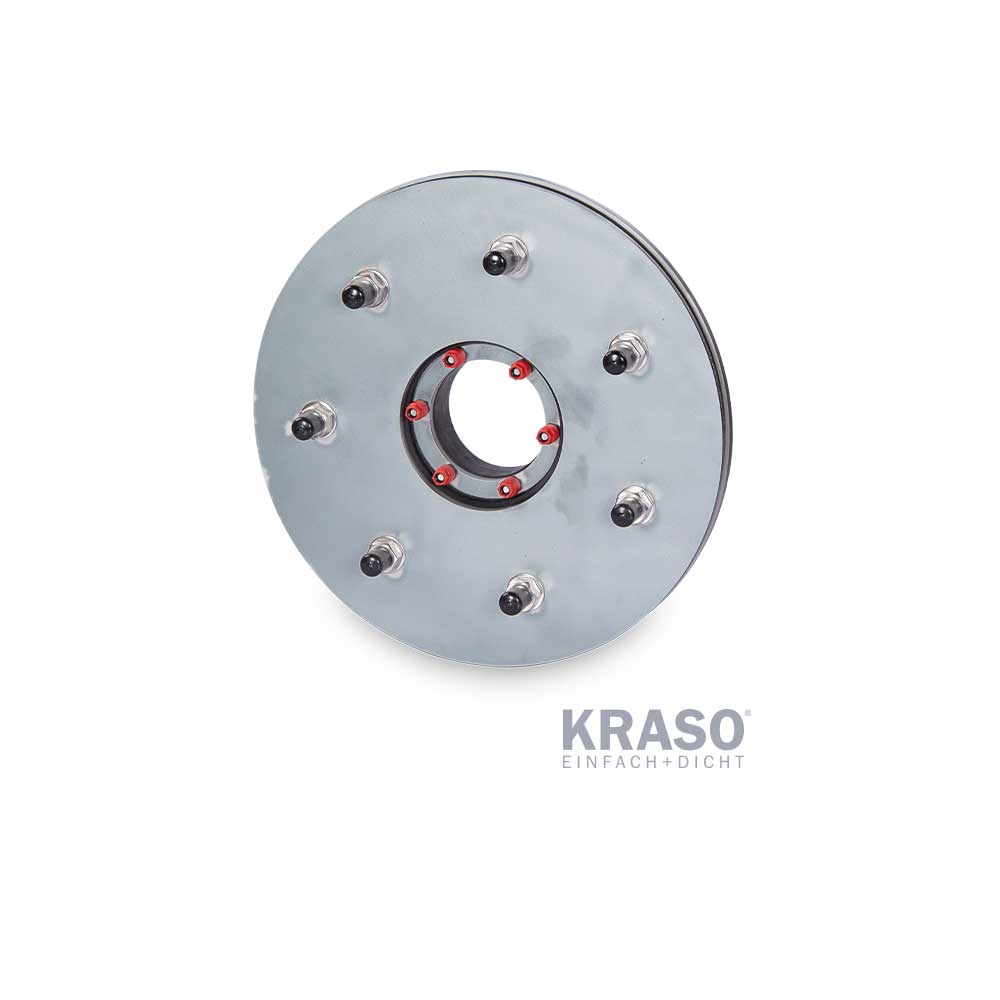

KRASO Sealing Insert Type FL (piece)
fixed-loose flange with KRASO Sealing Insert, for installation of media pipes for buildings with exterior sealing ("black tank") according to DIN 18533. Available in non-corrosive stainless steel V2A or electrogalvanised, each with or without special coating, Torque Control Nut KRASO DKM | DIN 18533 W2.1 -E and W2.1 -E
Fixed-loose flange for dowel-fixing or for concreting and as
a sealing insert
+ For buildings with exterior sealing (“black tank“): according to DIN 18533 (“sealing of below-ground structural elements“)
+ Each design available as separate types for pressing and non-pressing water
+ Available in non-corrosive stainless steel V2A or V4A and in electrogalvanised steel
+ Upon request available with special coating for buildings with thick coating (e.g. KMB)!
+ DIN 18533: water exposure classes W2.1 -E and W2.2 -E (“medium impact of pressing water“ - water column ≤ 3 metres / „high impact of pressing water" - water column ≥ 3 metres)
Specifikacijos
| Skersmuo | 100, 80, 125, 150, 200, 250, 300 |
| Dizainas | spaudžiant vandenį, nespaudžiantis vanduo |
| Medžiaga | nerūdijantis plienas, elektrocinkuotas |
| Speciali danga | be specialios dangos, su specialia danga |
