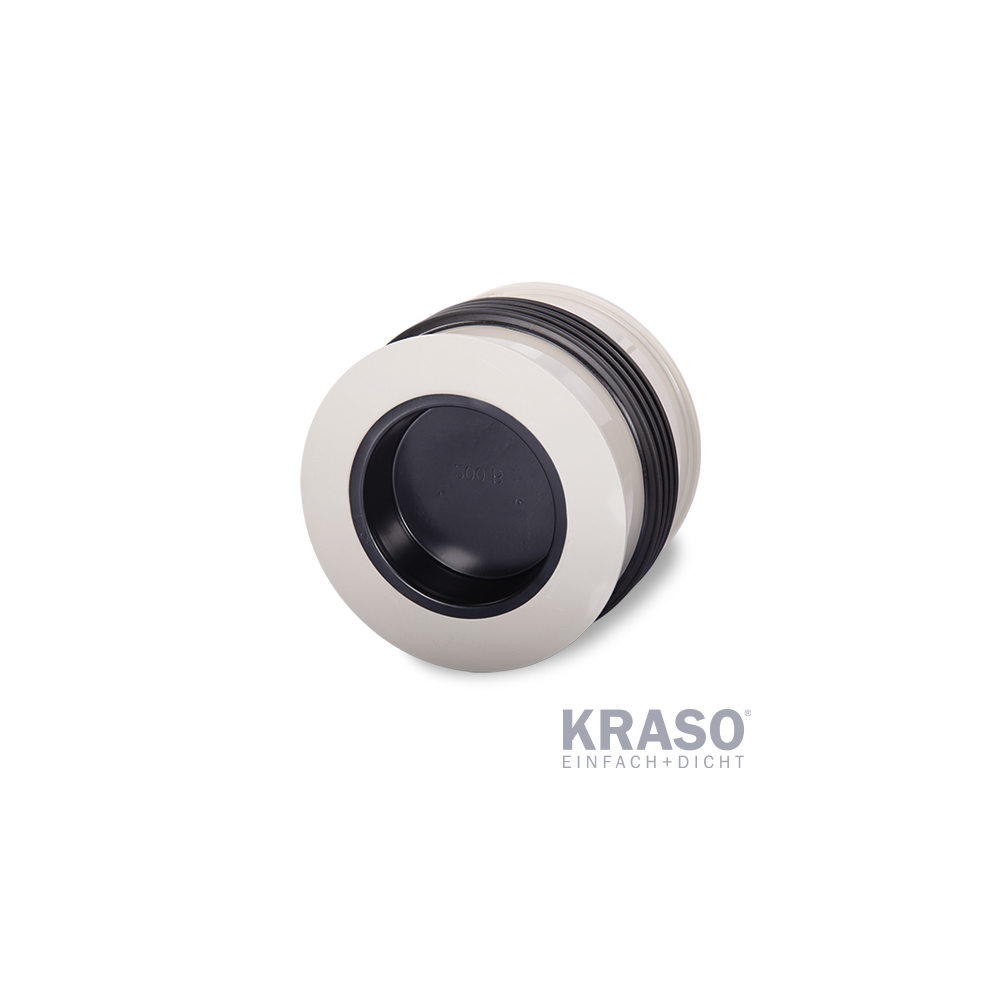

KRASO Wall Penetration Type B - thermally insulated - (piece)

https://lta.primostar.eu/web/image/product.template/6663/image_1920?unique=0661329


In accordance with DIN EN 14758, for installation in waterproof concrete walls, thermally welded KRASO 4 Seal on both sides, formed plug-in sleeve on both sides, 2 KRASO Covers as an installation aid and thermally insulated body surrounding approx. 5 cm | DafStB waterproof concrete guideline: stress class 1 + 2


The proven wall penetration made of solid wall material


 + KRASO 4 Seal - MPA-tested up to 10 bar!

+ IAF-tested radon tight!

+ Dimensionally and pressure-resistant solid wall material: low abrasion, easy installation at low temperatures

In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)

+ Also available in KG 2000: polypropylene (PP), mineral-filled, smooth walls, long-lasting

+ Formed plug-in sleeve on both sides for connection to KG/HT pipes

+ Including two KRASO Covers as installation aid!

+ Also available as thermally insulated wall penetration!

+ DafStB waterproof concrete guideline: stress class 1 + 2


316,37 € 316.37 EUR 316,37 €

Not Available For Sale

(316,37 € / gab)
  • Skersmuo DN
  • sienelės storis cm

Ši kombinacija neegzistuoja.

Specifikacijos

Skersmuo DN 110, 125, 160, 200, 250, 315, 400, 500
sienelės storis cm 20, 30, 40, 50, 24, 25, 35, 36,5, 45
