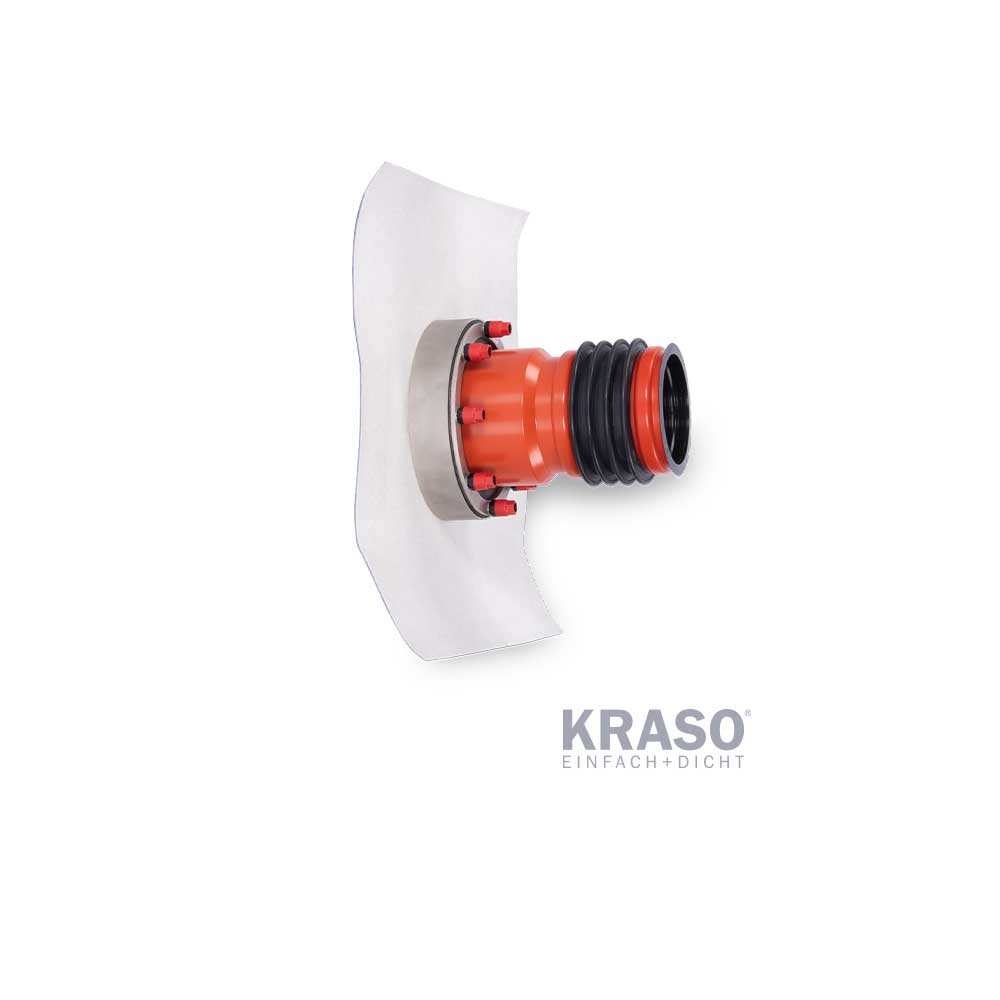

KRASO Wall Penetration Type FBV-FR - flow direction (piece)
Wall penetration for a compliant integration of fresh concrete composite films | DafStB waterproof concrete guideline: stress class 1 + 2
Always the right flow direction using FBV system
+ Wall Penetration for a compliant integration of fresh concrete composite films
+ Independent from the manufacturer: fresh concrete composite films (FBV) from any manufacturer can be integrated into the system at our factory
+ KRASO FBV Sealing Flange made of non-corrosive stainless steel V2A with 20 cm surrounding, square fresh concrete composite film
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ Thanks to the KRASO Wall Penetration Type FR, waste water always maintains the correct flow direction! Unnecessary edges are prevented. Blocked pipes: impossible!
+ Due to the flexible yet watertight connection to the pipe system, stresses occurring caused by the setting of the KG pipes are minimised!
+ The basement remains dry and is protected against radon thanks to the up to 10 bar water pressure tight surrounding KRASO 4 Seal!
+ Made of solid wall material! Also available in KG 2000 made of polypropylene (PP), mineral-filled, smooth walls, long-lasting
+ DafStb waterproof concrete guideline: stress class 1 + 2
Specifikacijos
| Skersmuo DN | 110, 125, 160 |
| sienelės storis cm | 20, 30, 24, 25 |
| KG or KG 2000 | KG, KG 2000 |
