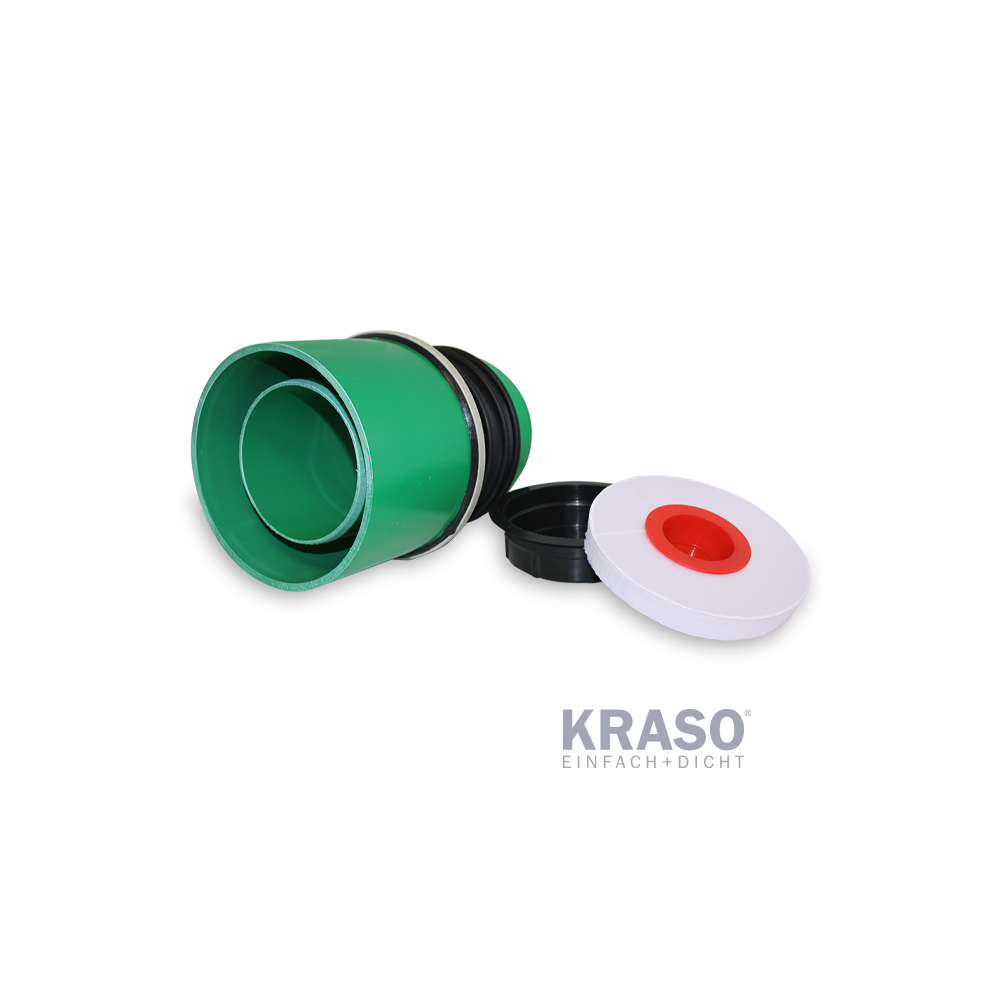

KRASO Wall Penetration Type FR - KG 2000 (piece)
In accordance with DIN EN 14758, for installation in waterproof concrete walls for the connection to KG 2000 pipes on both sides, with water pressure tight surrounding, thermally welded KRASO 4 Seal, formed plug-in sleeve on one side, one-sided spigot and 2 KRASO Covers as an installation aid | DafStB waterproof concrete guideline: stress class 1 + 2
Always the right flow direction
+ One flow direction!
+ Flexible yet watertight connection to the pipe system: stresses caused by settling of KG pipes are minimised!
+ KRASO 4 Seal - MPA-tested up to 10 bar!
+ IAF-tested: radon-tight!
+ Dimensionally and pressure resistant solid wall material: low abrasion, easy installation at lower temperatures
+ In accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000)
+ DafStB waterproof concrete guideline: stress class 1 + 2
Specifikacijos
| Skersmuo DN | 110, 125, 160 |
| sienelės storis cm | 30, 24, 25 |
